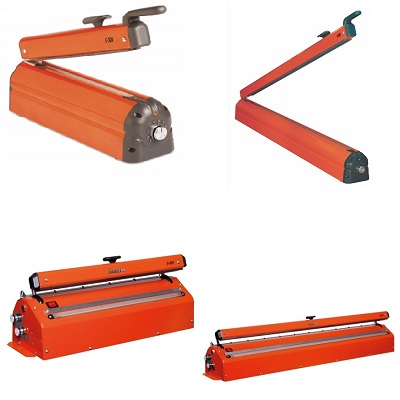

Impulse Heat Sealers
- An impulse sealer is a powered tool used to seal different types of plastic packaging, items such as poly bags containing groups of parts or components. It uses an impulse of electricity to heat up a metal wire that melts one layer of plastic to the other.
- How our sealing machines work: Using heated sealing wires that are activated when the sealing bar is pressed closed. It pushes the heated wire on to the film sealing it closed.
- What can you seal:Our machines can be used with cellophane bags, poly tubing, layflat tubing, open ended poly bags, plastic sheeting, foil and other packaging that has metal in them, such as foil bags which have a foil inner and a paper outer. PP, PVC, PS, IPS, PA, aluminium foil, and board materials
- Impulse sealers apply a brief impulse of heat to close the bag that provides a durable sealcreatinga quality air and watertight seal on a wide variety of plastics.
- Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction.
| Item Code |
Description | Lead Time |
Images | Price per Machine | Pack Per Price | Buy | Enter No. of Units |
|---|---|---|---|---|---|---|---|
| 1+ Machines |
|||||||
C320 |
C-Type 320mm Heat Sealer Semi-automatic impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 300mm Adjustable sealing time Seal width 2.5mm Seal length 320mm Dimensions: 550x100x175mm (L x W x H) Weight 4.0kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
2-3 Days |  |
219.00 | |||
| C420 |
C-Type 420mm Heat Sealer Semi-automatic impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 400mm Adjustable sealing time Seal width 2.5mm Seal length 420mm Dimensions: 650x100x175mm(L x W x H) Weight 4.5kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
2-3 Days |  |
269.00 | |||
| C620 |
C-Type 620mm Heat Sealer Semi-automatic impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 600mm Adjustable sealing time Seal width 2.5mm Seal length 620mm Dimensions: 850x100x175mm(L x W x H) Weight 5.4kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
2-3 Days |  |
349.00 | |||
| C820 |
C-Type 820mm Heat Sealer Semi-automatic impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 800mm Adjustable sealing time Seal width 2.5mm Seal length 820mm Dimensions: 1050x100x175mm(L x W x H) Weight 9.2kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
2-3 Days |  |
429.00 | |||
| S420 |
S-Type 420mm Heat Sealer Impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 400mm Manual or foot-pedal operation Cutter removes excess film from sealed edge
Adjustable sealing time Seal width 5mm Seal length 420mm Dimensions: 605x206x195mm(L x W x H) Weight 14.2kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
Next Day |  |
969.00 | |||
| S620 |
S-Type 620mm Heat Sealer Impulse heat sealer Integral film cutter Optimax® Branded Maximum film width and cutting length 600mm Manual or foot-pedal operation Can be operated remotely Cutter removes excess film from sealed edge Typical output 200-400 seals per shift
Adjustable sealing time Seal width 5mm Seal length 620mm Dimensions: 805x206x195mm(L x W x H) Weight 19.4kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
Next Day |  |
1349.00 | |||
| S820 |
S-Type 820mm Heat Sealer Impulse heat sealer Integral film cutter Locking sealing bar Optimax® Branded Maximum film width and cutting length 800mm Manual or foot-pedal operation Can be operated remotely Cutter removes excess film from sealed edge Typical output 200-400 seals per shift
Adjustable sealing time Seal width 5mm Seal length 820mm Dimensions: 1005x206x195mm(L x W x H) Weight 24kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
Next Day |  |
1849.00 | |||
| S1020 |
S-Type 1020mm Heat Sealer Impulse heat sealer Integral film cutter Locking sealing bar Optimax® Branded Maximum film width and cutting length 1000mm Manual or foot-pedal operation Can be operated remotely Cutter removes excess film from sealed edge Typical output 200-400 seals per shift
Adjustable sealing time Seal width 5mm Seal length 1020mm Dimensions: 1205x206x195mm(L x W x H) Weight 30.3kg Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
Next Day |  |
2295.00 |
- Product Description
Impulse Heat Sealers
Constructed from metal our machines are powder coated over an aluminium body and seal bar providing a heavy duty durable product. Simply turn on the machine and it’s immediately ready to start sealing, as no warm up time is required with our equipment. Our variable timers allow you to seal different types and thicknesses of films. Please take a look at the full specifications of all 8 models below to find the right machine for your needs.

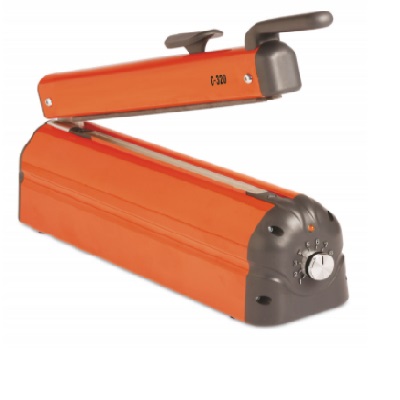

C-Type 320mm Heat Sealer
|
C-Type 320mm Heat Sealer |
|
Semi-automatic impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 300mm |
|
Adjustable sealing time |
|
Seal width 2.5mm |
|
Seal length 320mm |
|
Dimensions: 550x100x175mm (L x W x H) |
|
Weight 4.0kg |
|
Powder coated aluminium extruded body and seal bar for greater rigidity |
|
Sealing wire tensioning unit maintains constant seal width |
|
Integral safety film cutter to trim excess film from sealed edge |
|
No mechanical switches, for optimum reliability |
|
Power supply 230V 50Hz |
|
Power consumption 218W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

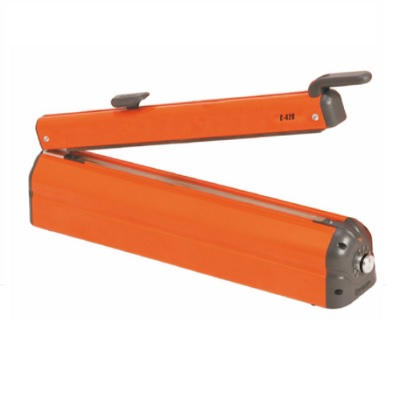

C-Type 420mm Heat Sealer
|
C-Type 420mm Heat Sealer |
|
Semi-automatic impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 400mm |
|
Adjustable sealing time |
|
Seal width 2.5mm |
|
Seal length 420mm |
|
Dimensions: 650x100x175mm (L x W x H) |
|
Weight 4.5kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Sealing wire tensioning unit maintains constant seal width |
|
Integral safety film cutter to trim excess film from sealed edge |
|
No mechanical switches, for optimum reliability |
|
Power supply 230V 50Hz |
|
Power consumption 248W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

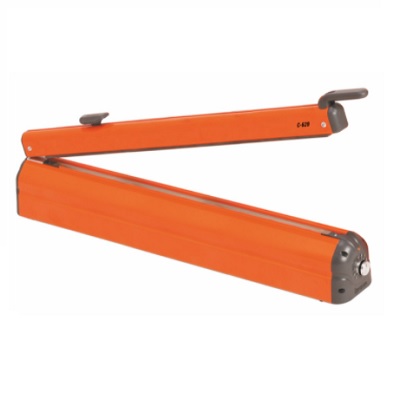

C-Type 620mm Heat Sealer
|
C-Type 620mm Heat Sealer |
|
Semi-automatic impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 600mm |
|
Adjustable sealing time |
|
Seal width 2.5mm |
|
Seal length 620mm |
|
Dimensions: 850x100x175mm (L x W x H) |
|
Weight 5.4kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Sealing wire tensioning unit maintains constant seal width |
|
Integral safety film cutter to trim excess film from sealed edge |
|
No mechanical switches, for optimum reliability |
|
Power supply 230V 50Hz |
|
Power consumption 365W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

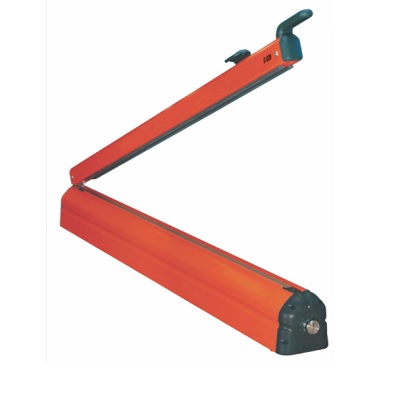

C-Type 820mm Heat Sealer
|
C-Type 820mm Heat Sealer |
|
Semi-automatic impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 800mm |
|
Adjustable sealing time |
|
Seal width 2.5mm |
|
Seal length 820mm |
|
Dimensions: 1050x100x175mm (L x W x H) |
|
Weight 9.2kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Sealing wire tensioning unit maintains constant seal width |
|
Integral safety film cutter to trim excess film from sealed edge |
|
No mechanical switches, for optimum reliability |
|
Power supply 230V 50Hz |
|
Power consumption 468W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

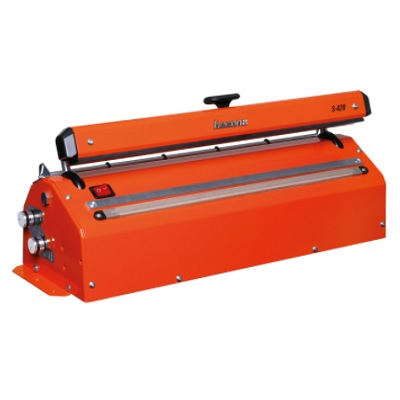

S-Type 420mm Heat Sealer
|
S-Type 420mm Heat Sealer |
|
Impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 400mm |
|
Manual or foot-pedal operation |
|
Cutter removes excess film from sealed edge |
|
Typical output 200-400 seals per shift |
|
|
|
Adjustable sealing time |
|
Seal width 5mm |
|
Seal length 420mm |
|
Dimensions: 605x206x195mm (L x W x H) |
|
Weight 14.2kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Gas sprung electromagnetically locking sealing bar |
|
Separate electronic adjustment of sealing and cooling cycle times |
|
Sealing wire tensioning unit for seal width consistency |
|
Manual or foot pedal sealing head actuation |
|
Manual integral safety cutter removes excess film from sealed edge |
|
Power supply 230V 50Hz |
|
Power consumption 450W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

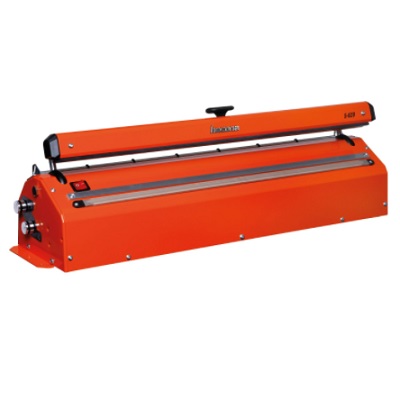

S-Type 620mm Heat Sealer
|
S-Type 620mm Heat Sealer |
|
Impulse heat sealer |
|
With integral film cutter |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 600mm |
|
Manual or foot-pedal operation |
|
Can be operated remotely |
|
Cutter removes excess film from sealed edge |
|
Typical output 200-400 seals per shift |
|
|
|
Adjustable sealing time |
|
Seal width 5mm |
|
Seal length 620mm |
|
Dimensions: 805x206x195mm (L x W x H) |
|
Weight 19.4kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Gas sprung electromagnetically locking sealing bar |
|
Separate electronic adjustment of sealing and cooling cycle times |
|
Sealing wire tensioning unit for seal width consistency |
|
Manual or foot pedal sealing head actuation |
|
Manual integral safety cutter removes excess film from sealed edge |
|
Power supply 230V 50Hz |
|
Power consumption 650W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

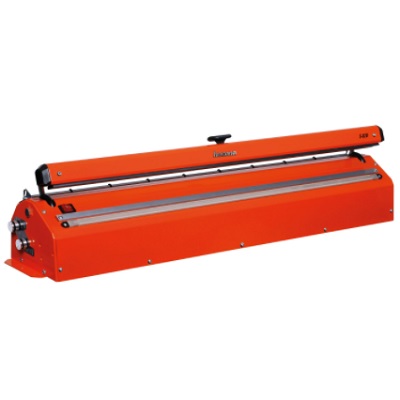

S-Type 820mm Heat Sealer
|
S-Type 820mm Heat Sealer |
|
Impulse heat sealer |
|
With integral film cutter |
|
Locking sealing bar |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 800mm |
|
Manual or foot-pedal operation |
|
Can be operated remotely |
|
Cutter removes excess film from sealed edge |
|
Typical output 200-400 seals per shift |
|
|
|
Adjustable sealing time |
|
Seal width 5mm |
|
Seal length 820mm |
|
Dimensions: 1005x206x195mm (L x W x H) |
|
Weight 24kg |
|
Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Gas sprung electromagnetically locking sealing bar |
|
Separate electronic adjustment of sealing and cooling cycle times |
|
Sealing wire tensioning unit for seal width consistency |
|
Manual or foot pedal sealing head actuation |
|
Manual integral safety cutter removes excess film from sealed edge |
|
Power supply 230V 50Hz |
|
Power consumption 850W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |

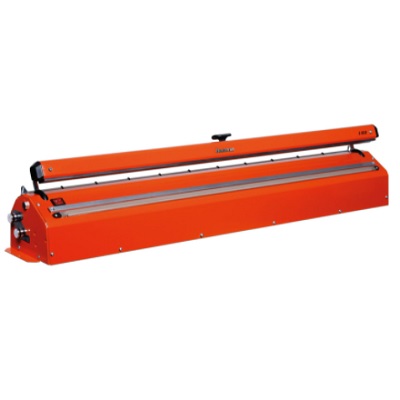

S-Type 1020mm Heat Sealer
|
S-Type 1020mm Heat Sealer |
|
Impulse heat sealer |
|
With integral film cutter |
|
Locking sealing bar |
|
|
|
Optimax® Branded |
|
|
|
Maximum film width and cutting length 1000mm |
|
Manual or foot-pedal operation |
|
Can be operated remotely |
|
Cutter removes excess film from sealed edge |
|
Typical output 200-400 seals per shift |
|
|
|
Adjustable sealing time |
|
Seal width 5mm |
|
Seal length 1020mm |
|
Dimensions: 1205x206x195mm (L x W x H) |
|
Weight Powder coated aluminum extruded body and seal bar for greater rigidity |
|
Gas sprung electromagnetically locking sealing bar |
|
Separate electronic adjustment of sealing and cooling cycle times |
|
Sealing wire tensioning unit for seal width consistency |
|
Manual or foot pedal sealing head actuation |
|
Manual integral safety cutter removes excess film from sealed edge |
|
Power supply 230V 50Hz |
|
Power consumption 950W |
|
Warranty: All products come with a full 12 month return to base manufacturer’s warranty in the unlikely event of a malfunction. |
